Rack and Pinion Manufacturer for CNC & Automation

Your Trusted Partner for Linear Motion

Since 1980, proudly made in Taiwan.

NO.1 Market Share of Precision Racks

For Machine Center in Asia

Hot Items

OUR PRODUCTS

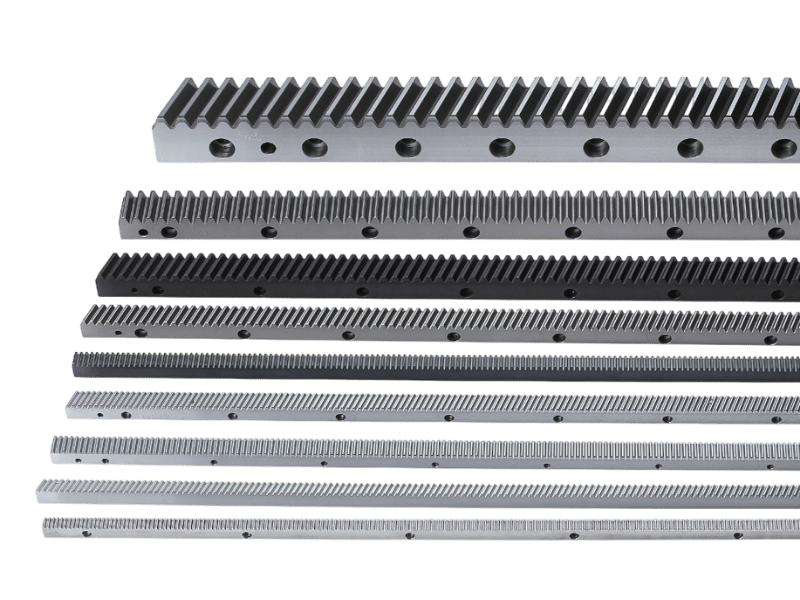

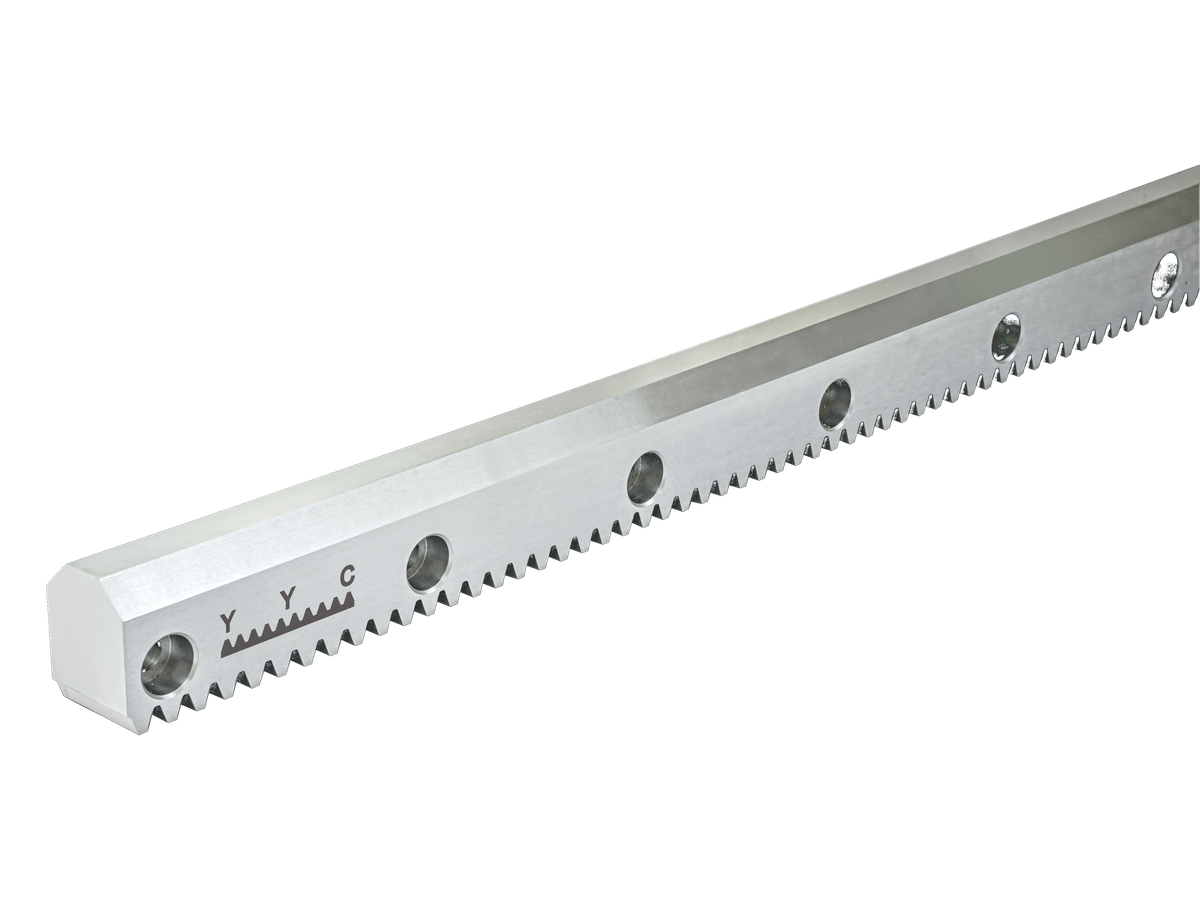

Rack

YYC Standard Rack Series integrates a wide selection of modules, tooth profiles, materials, and precision grades, providing designers with flexible and ready-to-select motion solutions.

• Module range: M1 – M10
• Tooth profile: Straight, Helical
• Heat treatment: Laser hardened, Induction hardened
• Accuracy grade: DIN 5–10
• Material options: Medium carbon steel, Alloy steel

YYC racks are engineered to suit various motion systems with different load capacities, rigidity, and speed requirements, ensuring smooth operation, stable quality, and optimal transmission performance.

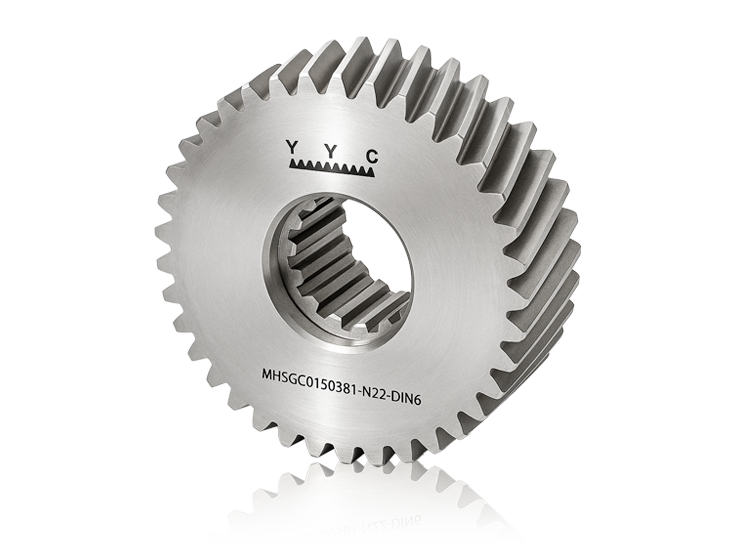

Spline Pinion

YYC Spline Pinion Series DIN5480

The YYC Spline Pinion Series is designed and applied with DIN5480 for precise torque transmission and easy integration with reducers or gearboxes through spline shafts. Each spline pinion is manufactured with high concentricity and precise spline engagement, ensuring smooth power transfer and reliable alignment with YYC racks.

• Module range: M1.5-M4
• Tooth profile: Helical, Left Hand Angle 19˚31’42”
• Mounting type: Internal spline connection
• Accuracy grade: DIN 6
• Material options: Alloy steel (SCM415)
• Heat treatment: Carburized

YYC spline pinions are ideal for applications requiring compact installation, zero-slip connection, and high-torque precision motion. With advanced machining and surface finishing, YYC ensures perfect spline-to-shaft fit, minimal backlash, and long service life.

Guideway Rack

The YYC Guideway Rack integrates a precision rack and linear guideway into a single component, available in sizes 15, 20, 25, and 35 across V-type, round-type, and general profiles. Ground variants use SCM440 alloy steel, hardness HRC 53–58°, accuracy DIN 6 (Total Pitch Error Fp/1000 ≤ 0.036 mm); milled variants use S50C steel at DIN 8. Tooth profiles available in straight or helical (right-hand 19°31'42"). Suitable for laser cutting machines, CNC routers, automated material handling, and large gantry systems requiring long-travel linear motion.

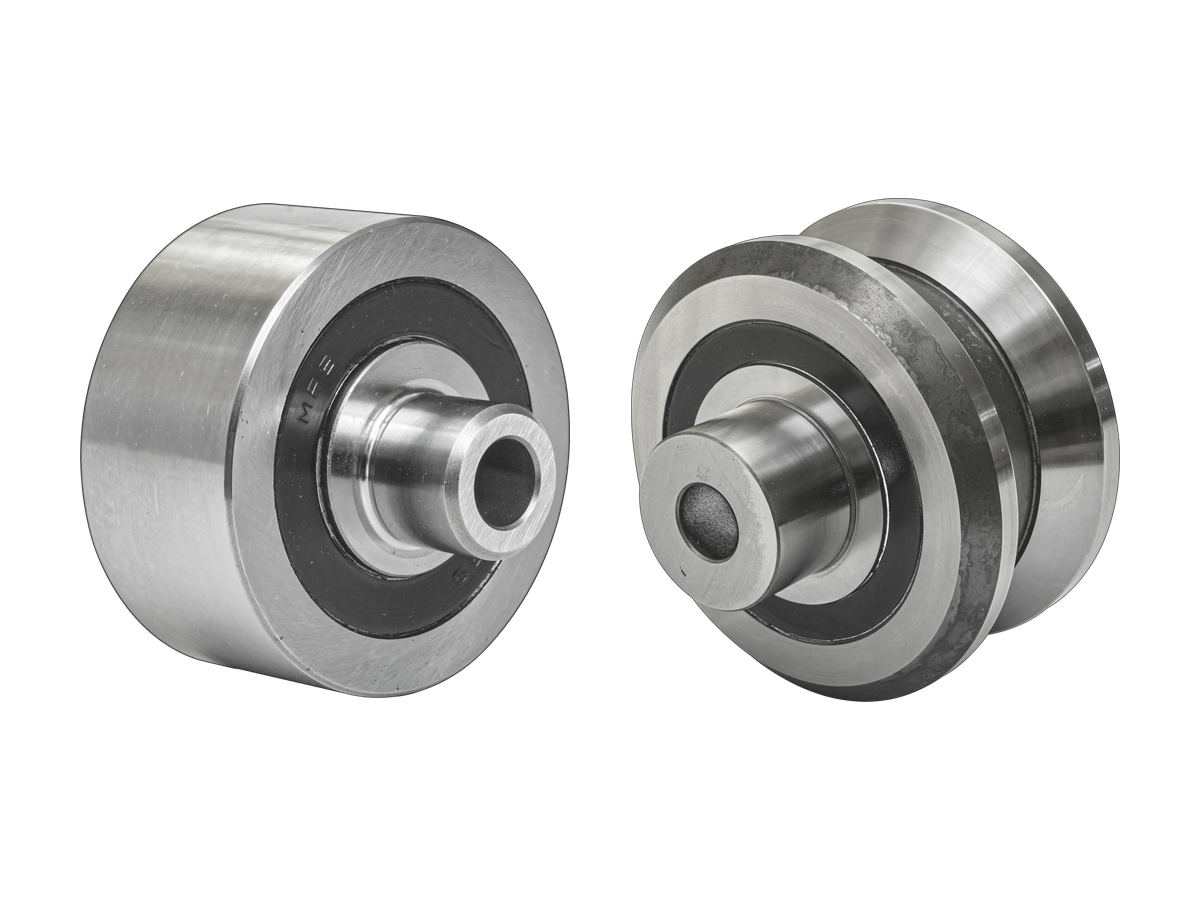

Roller Series

The YYC Roller Series is manufactured from SUJ2 (100Cr6) bearing steel, hardened to HRC 60–64° with a radial tolerance of 0–0.01 mm. Available in V-type (UV) and round-type (UR) profiles across sizes 15, 20, 25, and 35, fully compatible with the YYC Guideway Rack. V-type rollers can be paired with the RH-series lubrication cover unit to extend maintenance-free service life. Suitable for laser cutting machines, CNC routers, automated material handling, and gantry systems requiring high-speed, long-stroke linear motion.

View All Products

Application

SOLUTION

YUAN YI CHANG MACHINE CO., LTD.

COMPANY PROFILE

Founded in 1980, YYC Machinery is a leading Taiwanese manufacturer of precision racks and pinions, trusted by global OEMs for both standard and customized motion solutions. With over 45 years of gear manufacturing expertise and data, YYC has built a fully integrated and semi-automated production system, covering machining, heat treatment, grinding, inspection, and robotic packing, all supported by digital process control and traceability to ensure stable and repeatable accuracy.

YYC’s standard rack series meets DIN, JIS, and AGMA standards up to DIN 5 / JIS 1 precision, offering high performance and cost efficiency for CNC machine tools, automation systems, and robotic gantries. At the same time, YYC’s engineering team provides comprehensive customization — from material selection (S45C, S50C, SCM415, SCM440, SCNM220, bronze, POM plastic, and stainless steel) and heat-treatment control to profile accuracy optimization — serving both medium- and ultra-high-precision production projects.

Certified to ISO 9001 and ISO 14001, YYC upholds strict quality assurance and environmental responsibility.

Our core values guide everything we do:
• Humanity – We care for our people as family, fostering respect and partnership.
• Safety – Always our first priority in every operation.
• Quality – Never compromised; every part reflects our commitment to excellence.
• Affordability – Delivering premium precision with competitive value.

YYC stands for Precision, Flexibility, and Value — your trusted partner transforming motion into measurable performance worldwide.
