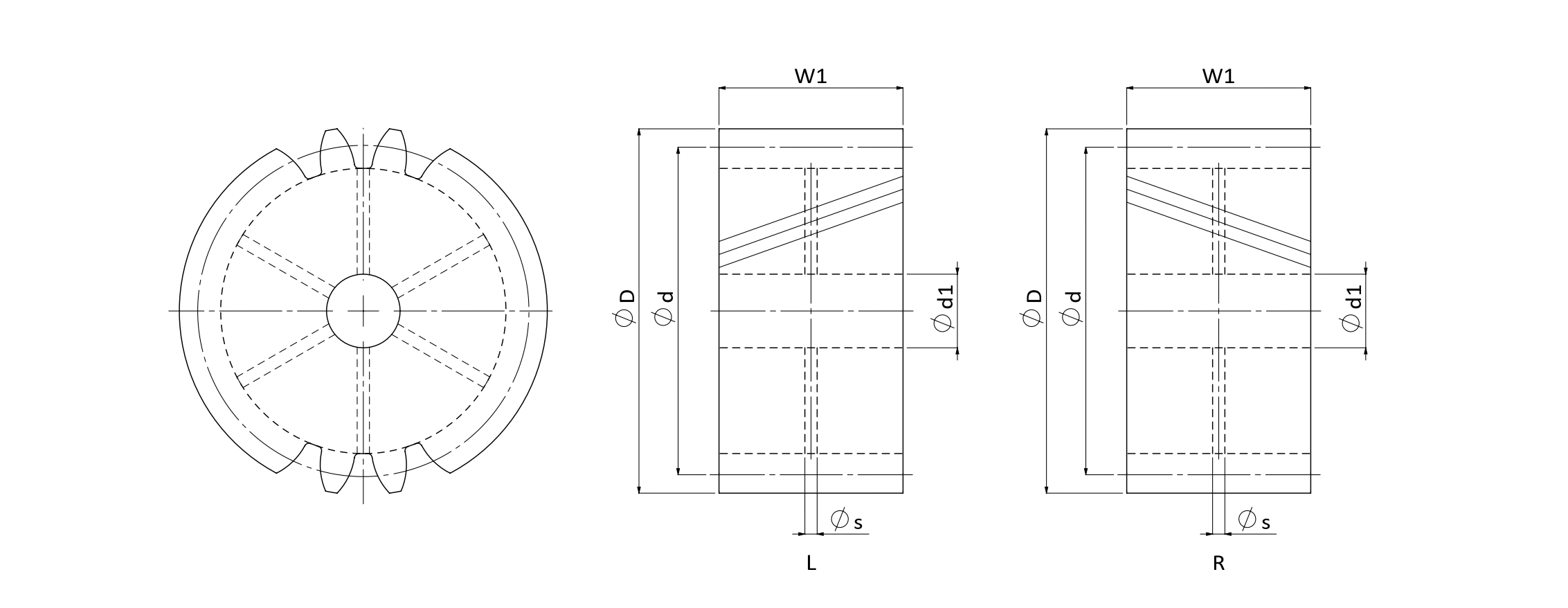

| Product Code | FHM | Module (M) | 4 |
|---|---|---|---|
| No. of. Teeth (Z) | 18 | øD | 84.4 |
| Weight (KG) | 0.105 | Pitch Circle Diameter Range (ød) | 70-100 |
| Pitch Circle Diameter (ød) | 76.4 | Hole Diameter (ød1) | 12 |
| W1 | 40 | Helix direction(β) | Right Hand Helix Angle |
| Oil filler (øs) | 3 | Helix angle(β) | 19ﾟ31'42” |
Unit : mm
