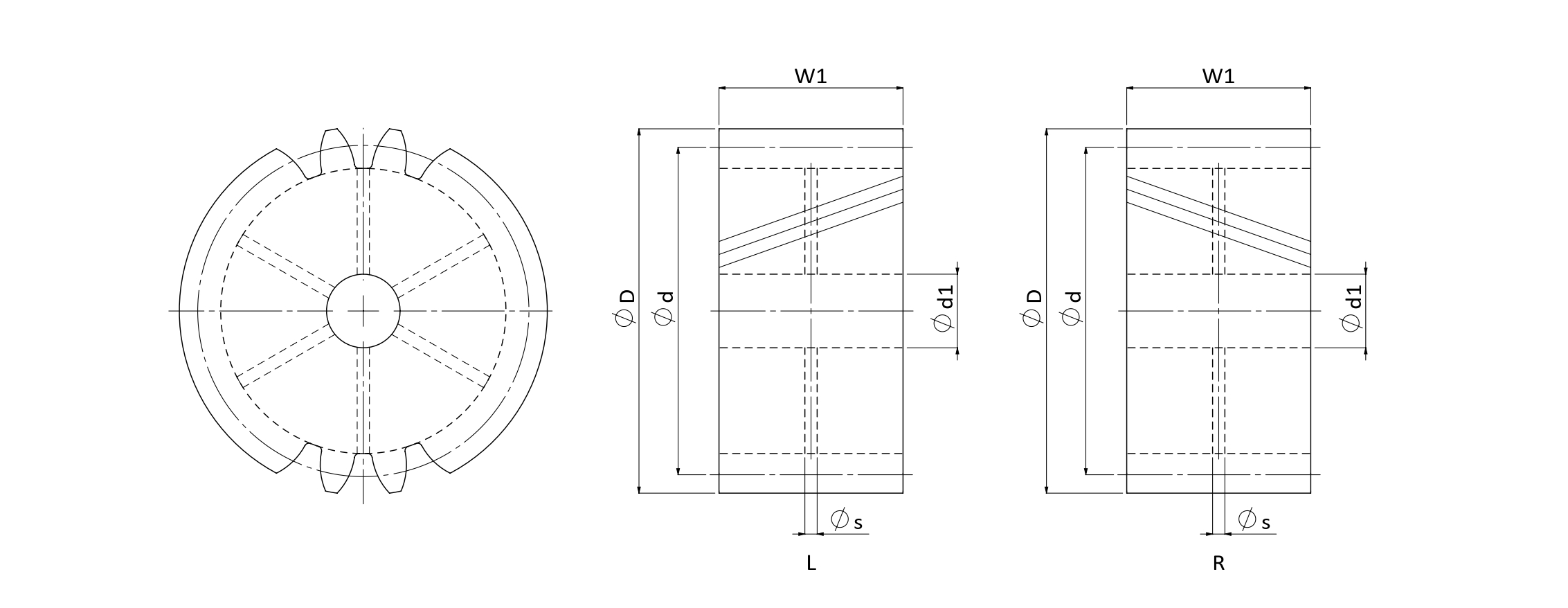

| Product Code | FHM | Module (M) | 6 |
|---|---|---|---|
| No. of. Teeth (Z) | 17 | øD | 120.2 |
| Weight (KG) | 0.318 | Pitch Circle Diameter Range (ød) | ＞100 |
| Pitch Circle Diameter (ød) | 108.2 | Hole Diameter (ød1) | 20 |
| W1 | 60 | Helix direction(β) | Left Hand Helix Angle |
| Oil filler (øs) | 4 | Helix angle(β) | 19ﾟ31'42” |
Unit : mm
