Felt Lubrication Pinion

FSM020019

Material : Felt

Add Inquiry

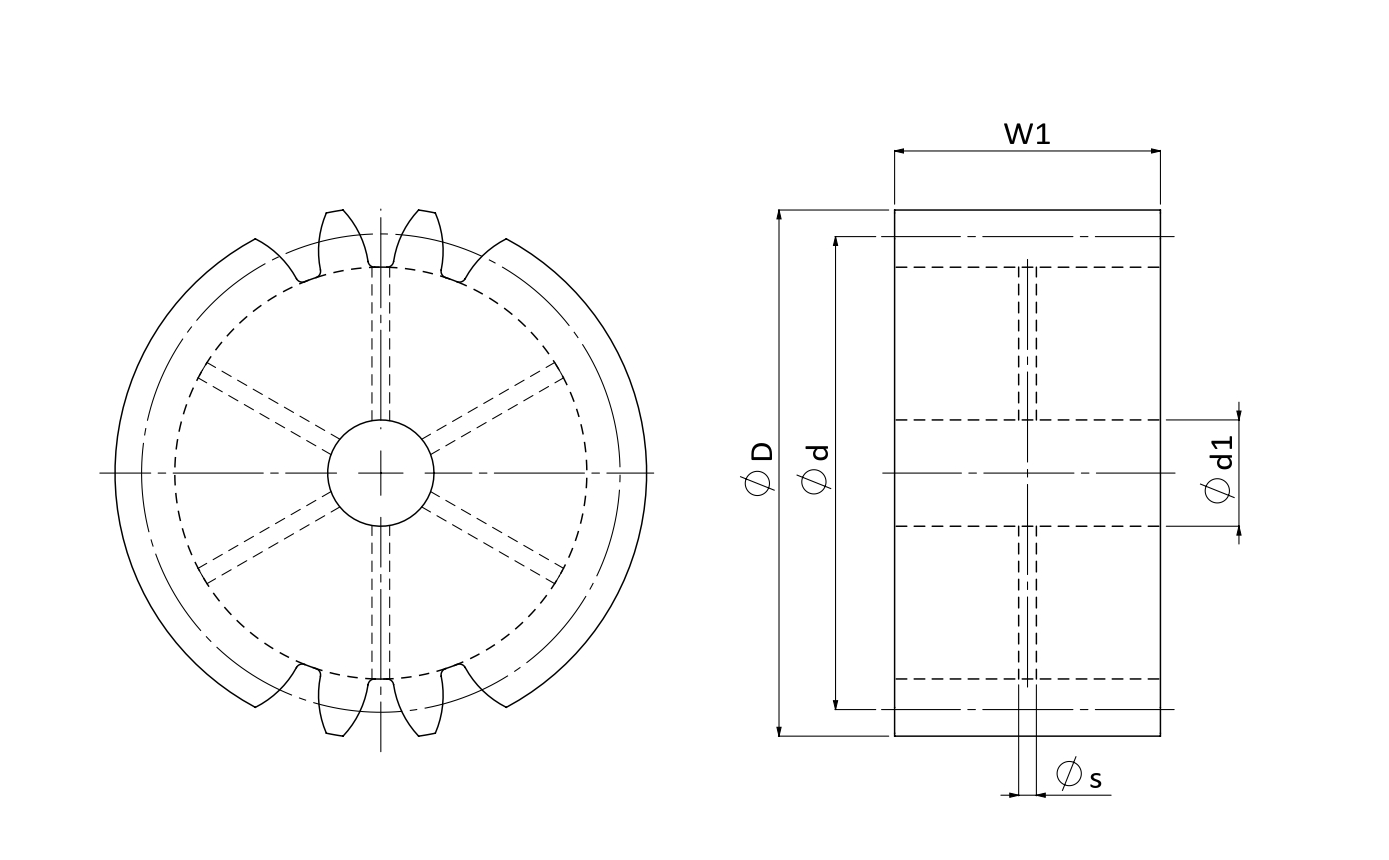

Technical Data
Product Code	FSM	Module (M)	2
No. of. Teeth (Z)	19	øD	42
Weight (KG)	0.016	Pitch Circle Diameter Range (ød)	≦50
Pitch Circle Diameter (ød)	38	Hole Diameter (ød1)	12
W1	25	Helix direction(β)	Straight
Oil filler (øs)	2	Helix angle(β)	0ﾟ

Unit : mm
