Felt Lubrication Pinion

FSM040019

Material : Felt

Add Inquiry

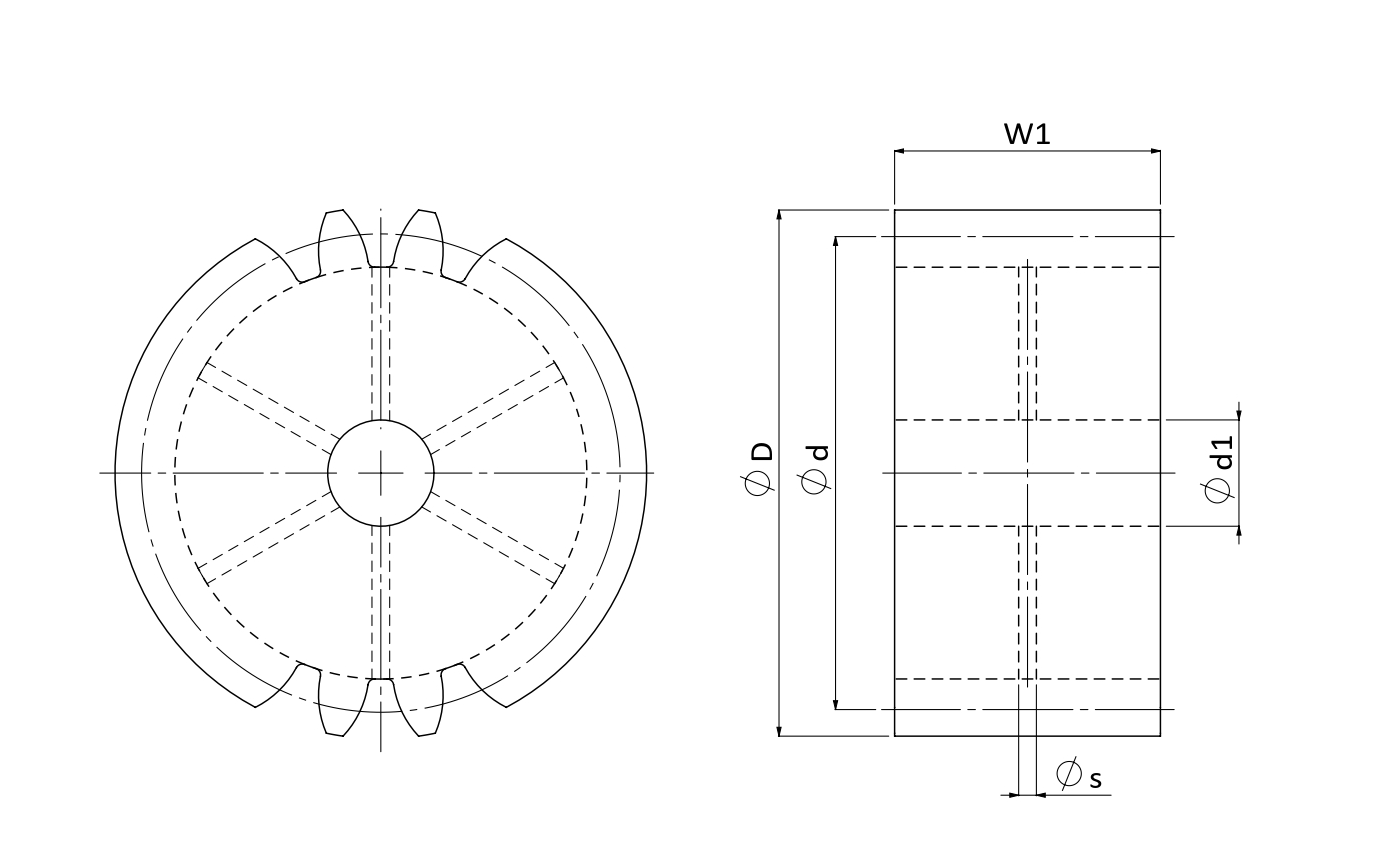

Technical Data
Product Code	FSM	Module (M)	4
No. of. Teeth (Z)	19	øD	84
Weight (KG)	0.105	Pitch Circle Diameter Range (ød)	70-100
Pitch Circle Diameter (ød)	76	Hole Diameter (ød1)	12
W1	40	Helix direction(β)	Straight
Oil filler (øs)	3	Helix angle(β)	0ﾟ

Unit : mm
