Felt Lubrication Pinion

FSM050018

Material : Felt

Add Inquiry

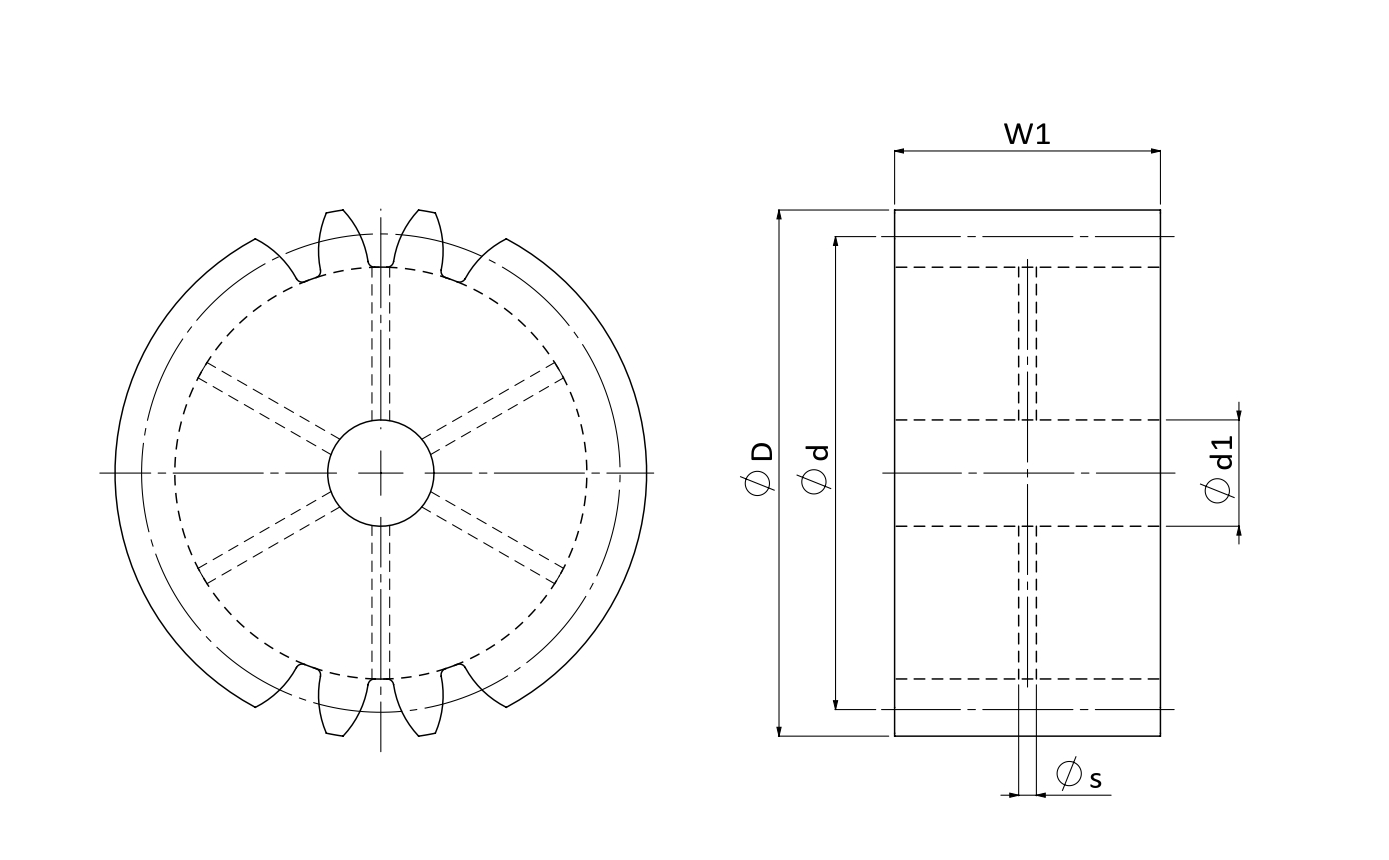

Technical Data
Product Code	FSM	Module (M)	5
No. of. Teeth (Z)	18	øD	100
Weight (KG)	0.182	Pitch Circle Diameter Range (ød)	70-100
Pitch Circle Diameter (ød)	90	Hole Diameter (ød1)	20
W1	50	Helix direction(β)	Straight
Oil filler (øs)	4	Helix angle(β)	0ﾟ

Unit : mm
