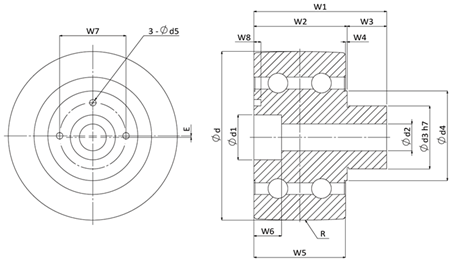

| Series | 15 | Tooth profile | None |
|---|---|---|---|
| Product Code | Roller | Type | Round Type |
| Heat Treatment | Hardness | Material | SUJ2 |
| ød1 | 13.5 | E | 1 |
| ød2 | 8.4 | Weight (KG) | 0.2 |
| W1 | 35 | ød3 | 15 |
| ød4 | 23.8 | W2 | 23 |
| W3 | 12 | W4 | 1 |
| ød | 47 | W5 | 22 |
| W6 | 9 | W7 | 18.5 |
| R | 500 | ød5 | 2.4 |
| W8 | 3 | Basic Dynamic Load Rating Cr (kN) | 14.4 |
| Basic Static Load Rating Cor (kN) | 8.47 |
Unit : mm
